Machining of hardened steel threaded sleeves

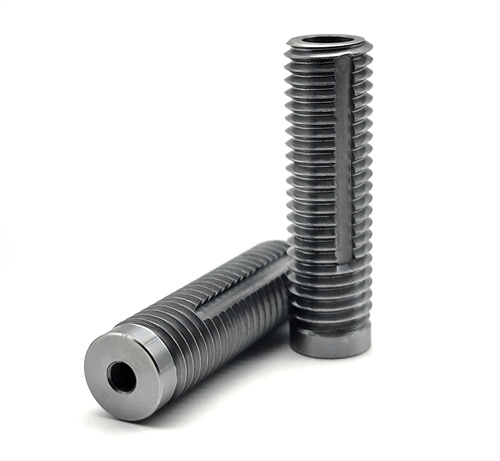

Hardened steel threaded sleeves are components with high strength, hardness, and excellent wear resistance. They are widely used in machinery manufacturing, aerospace, automotive, and other fields. They are primarily used to achieve removable connections between components and can withstand heavy loads and impact. Because hardened steel typically has a hardness above 50HRC, its machinability is extremely poor. The turning process presents challenges such as high cutting forces, high cutting temperatures, rapid tool wear, and difficulty maintaining surface quality. Therefore, turning hardened steel threaded sleeves is one of the most challenging aspects of machining. To achieve efficient and high-quality turning of hardened steel threaded sleeves, effective measures are required in terms of tool selection, cutting parameter optimization, and cooling and lubrication.
The selection of tool material is crucial for successful turning of hardened steel threaded sleeves. Due to the high hardness and excellent wear resistance of hardened steel, ordinary high-speed steel and carbide tools cannot meet its cutting requirements. Tool materials with higher hardness, better wear resistance, and greater heat resistance are essential. Currently, the main tool materials suitable for turning hardened steel include cubic boron nitride (CBN) tools, ceramic tools, and cermet tools. CBN tools are among the hardest tool materials currently available, reaching hardnesses of 8,000-9,000 HV. They offer excellent wear and heat resistance and can maintain excellent cutting performance under high-speed cutting conditions. They are suitable for finishing hardened steel threaded sleeves, achieving high dimensional accuracy and surface quality. Ceramic tools offer high hardness, wear resistance, and heat resistance, and are relatively affordable. They are suitable for semi-finishing and finishing of hardened steel threaded sleeves. However, they are brittle and have poor impact resistance, so sudden changes in cutting forces must be avoided during use. Cermet tools combine the advantages of ceramic and metal, offering high hardness and toughness, making them suitable for roughing and semi-finishing of hardened steel threaded sleeves.
Proper design of tool geometry significantly impacts the turning quality and efficiency of hardened steel threaded sleeves. Due to the high hardness and brittleness of hardened steel, the tool should have a small rake angle (generally -5°-0°) to enhance tool strength and prevent blade chipping. The clearance angle should be appropriately increased (generally 8°-12°) to reduce friction between the tool flank and the workpiece surface, thereby lowering cutting temperatures and tool wear. The lead rake angle is generally 60°-90° to minimize radial cutting forces and prevent workpiece vibration and deformation. The secondary rake angle is 5°-10° to reduce residual area on the machined surface and improve surface quality. The tool nose radius should be small (generally 0.2-0.5mm) to minimize extrusion and friction during cutting, reducing cutting forces and temperatures. For thread turning tools, the profile angle, rake angle, and clearance angle should be specifically designed based on the thread precision requirements and the characteristics of the hardened steel to ensure thread profile accuracy and surface quality.
Optimizing cutting parameters is a key approach to improving the efficiency and quality of turning hardened steel threaded sleeves. The cutting speed should be determined based on the tool material and the hardness of the hardened steel. When turning hardened steel with CBN tools, the cutting speed is generally 80-200 m/min; ceramic tools can be controlled at 60-120 m/min; and metal-ceramic tools have lower cutting speeds, generally 30-80 m/min. The feed rate should be kept low (typically 0.05-0.15 mm/r) to reduce cutting forces and surface roughness. However, a feed rate that is too low will increase cutting time and reduce machining efficiency. Therefore, it is important to select an appropriate feed rate while ensuring machining quality. The depth of cut should be determined according to the machining stage. For roughing, a depth of 0.1-0.5 mm can be used to quickly remove excess material; for finishing, a smaller depth of cut (0.05-0.1 mm) should be used to ensure machining accuracy and surface quality. When turning threads, the number of thread cuts and the depth of each cut should be reasonably determined based on the thread pitch and accuracy requirements to avoid tool damage or thread deformation due to excessive cutting force.
Proper use of cooling and lubrication systems can effectively lower cutting temperatures, reduce tool wear, and improve machined surface quality. The large amount of cutting heat generated during the turning of hardened steel can cause rapid tool wear and thermal deformation and burns on the workpiece surface, necessitating effective cooling and lubrication measures. Due to the high hardness of hardened steel, intense friction and extrusion occur during cutting. Ordinary emulsions are unable to meet the cooling and lubrication requirements. Extreme-pressure cutting oils or specialized hardened steel cutting fluids should be selected. These cutting fluids contain extreme-pressure additives such as sulfur, phosphorus, and chlorine. They can form a strong lubricating film under high-temperature and high-pressure conditions, effectively reducing friction between the tool and the workpiece, and between the tool and the chips, thereby lowering cutting temperatures. High-pressure jet cooling should be used, spraying the cutting fluid directly onto the cutting area to ensure adequate cooling. At the same time, an adequate supply of cutting fluid and good filtration must be ensured to prevent impurities from entering the cutting area and scratching the workpiece surface or exacerbating tool wear.
Key aspects of the turning process for hardened steel threaded sleeves also include workpiece clamping, process sequence arrangement, and quality inspection. Workpiece clamping should be secure and reliable to avoid vibration that can affect machining accuracy and surface quality. For thin-walled sleeves, specialized fixtures or soft jaws can be used to minimize the effects of clamping force on workpiece deformation. The machining sequence should follow the principle of “roughing first, finishing second, exterior first, interior second.” The sleeve’s outer diameter and end face should be machined first, followed by the inner hole and threads, to ensure positional accuracy between all surfaces. During the turning process, tool wear should be closely monitored, and severely worn tools should be replaced promptly to avoid compromising machining quality. After machining, the sleeve’s dimensional accuracy, thread finish, surface roughness, and hardness should be rigorously inspected to ensure compliance with design requirements. Only by comprehensively optimizing the turning process can efficient and high-quality machining of hardened steel threaded sleeves be successfully achieved.
